TraceLock

Both Reach-ins and Walk-ins can be purchased or retrofitted with TraceLock.

TraceLock100

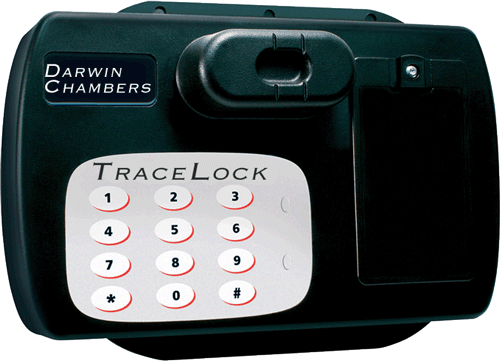

150 SERIES TRACELOCK

The 150 series TraceLock is a keyless, non-networked, electronic access control solution for almost all the reach-in and walk-in models we sell. This unit mounts externally and provides access control and an audit trail.

  • Audit trail of last 1,500 access attempts with date, time and user name
  • 250 user/supervisor codes
  • Three modes of access: Keypad, Proximity card* HID or iCLASS HID *Use existing identification cards
  • Use existing identification cards – TraceLock® reads magstripe Track 2 and HID® cards, eliminating the need to buy new cards.
  • Motor driven latching mechanism
  • 6-AA battery pack; premium brand Alkaline batteries recommended (not included)
  • Low battery indicator
  • Jump start 9-volt battery override power through mini USB communications port allows the user, with a valid credential, to access the TraceLock® when the batteries are exhausted
  • Mini USB communications port for audit trail download with optional TraceLock software
    • TraceLock300

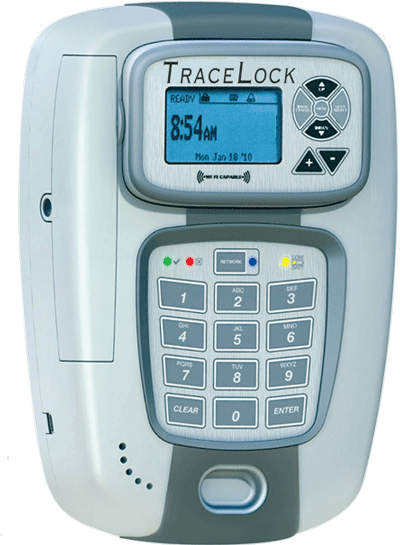

    300 SERIES TRACELOCK

    Provides network monitoring and access control for stability storage applications. Users can communicate with the TraceLock® through facility network either by a wireless 802.11g system or by Ethernet connection. Software (Optioinal Network Version) allows access to any TraceLock from any PC on the network. Many configurable options including: PC/TraceLock update frequency (i.e. audit trails), adding/deleting users, email & SMS (Short Message Service) provider allows for text message, fax and voice notification system, and low battery notification.

    CompX eLock® eliminates manual temperature logging.
  • Prevents human error
  • Automatically records temperature at programmed intervals
  • Data history is archived and easily accessible
    • Temperature Monitoring:
  • Utilizes 802.11g wireless protocol or Ethernet communication
  • Escalating notification system sends temperature “out of range” alerts via email, text message, voice call, or fax
  • Audible and visual local alarming at eLock
  • Records up to 500,000 temperature data points and provides programmable charts, graphs and reports
  • Standard temperature range 100˚C to -40˚C; Ultra low version to -100˚C
  • Programming can be done manually on user friendly LCD blue backlit screen or through LockView® software* *Sold separately
    • Access Control:
  • 3,000 users/supervisors codes
  • LockView software provides an Audit Trail of the last 15,000 access attempts; including date, time and user name
  • Five modes of access: Keypad, Proximity card* HID, iCLASS, MiFARE and DESFire smart cards *Use existing identification cards
  • Motor-driven latching mechanism provides the convenience of automatic relocking
  • Complies with Joint Commission standards and is 21 CFR Part 11 compliant

    • Optional 300 TraceLock software package allows:

    • Provides a comprehensive audit trail of the last 15,000 access attempts; including date, time and user name
    • Escalating notification system sends alerts via email; optional Short Message Service provides Text Message, Voice Messaging or Fax alerts
    • Complies with Joint Commission standards and is 21 CFR Part 11 compliant
    • LockView enables updates via the network to any eLock on the system. Updates can include
      • User changes (Add / Delete / Modify Credentials)
      • eLock Changes (Add / Delete / Modify eLocks)
      • Access Rights changes
    • Allows users to enter notes on actions taken following out-of-temperature range alerts
    • eReports produces and sends customized temperature monitoring reports and access audit logs to designated personnel in either Excel or Rich Text formats. No need to remember to retrieve temperature data!
      • Minimum System Requirements
    • 2GB RAM, 2GB free space on hard drive, 64bit Compatible, OS: Windows XP, Vista, 7. Pentium III 1.0 GHz or higher. Other configurations are acceptable; please consult factory for detailed information.

      Optional 150 TraceLock software package allows:

    • LockView® makes it easy to monitor audit trails for the last 1,500 access attempts, manage users and eLocks, and assign time-based restrictions and dual credential access. Downloading and uploading information is simple. Attach mini USB to communications port on eLock and standard USB to laptop.
    • Provides a comprehensive audit trail of the last 1,500 access attempts; including date, time and user name
    • Complies with Joint Commission standards and is 21 CFR Part 11 compliant
    • When connected, LockView sends updates to the eLock. Updates can include:
      • User changes (Add / Delete / Modify Credentials)
      • eLock Changes (Add / Delete / Modify eLocks)
      • Access Rights changes
    • LockView 5 works with all 150 and 200 series eLock models (software sold separately)
      • Minimum System Requirements
    • 2GB RAM, 2GB free space on hard drive, 64bit Compatible, OS: Windows XP, Vista, 7. Pentium III 1.0 GHz or higher. Other configurations are acceptable; please consult factory for detailed information

      Popular options include:

    • HID Prox Supervisor Card
    • Magstripe Supervisor Card
    • Software Kit
    • HID Proximity Tags
    • Custom Stike
    • Installation Services
