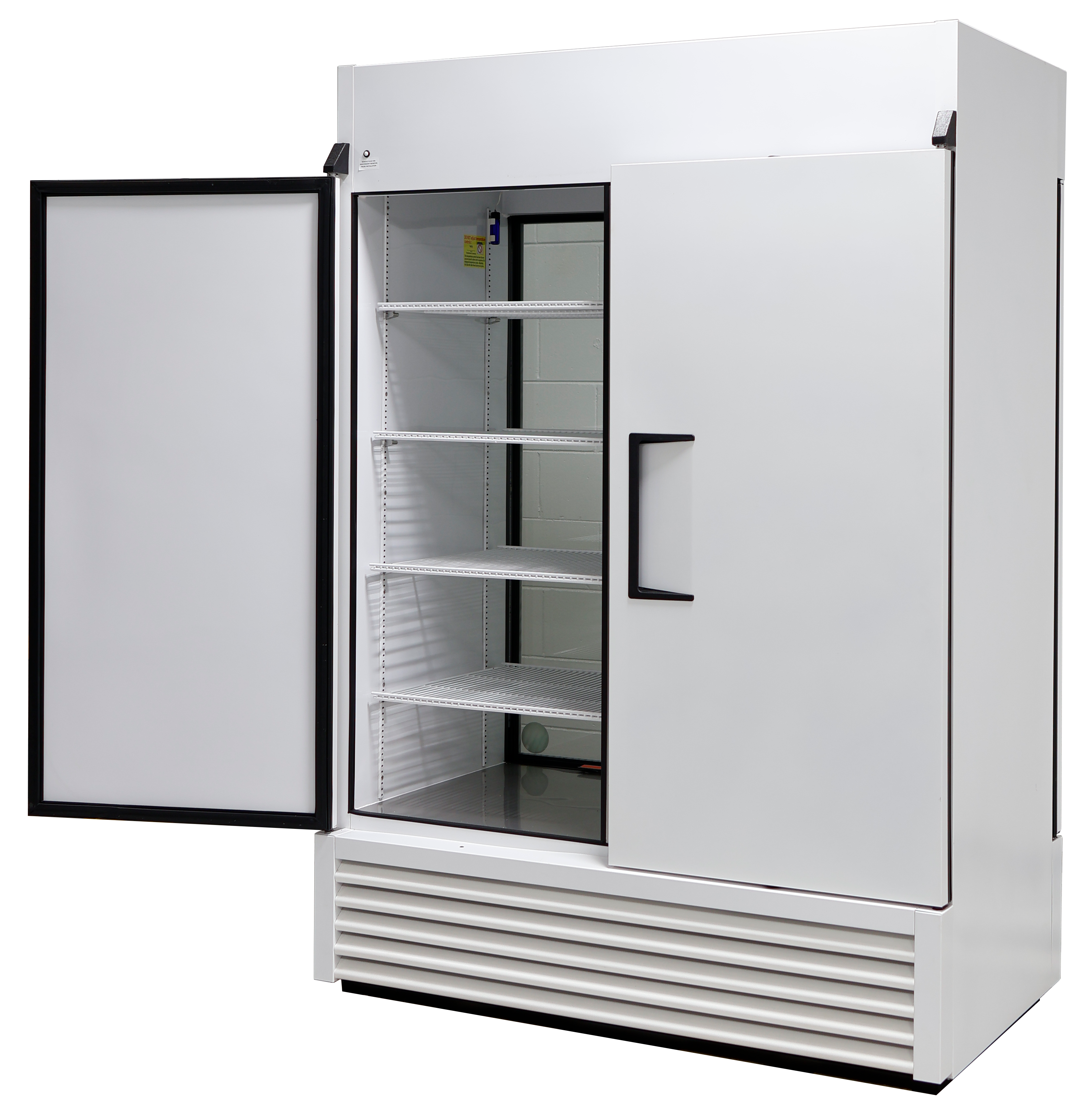

Pass Thru Refrigerator - PTR49


  • Unit comes standard with a temperature range of 1° C to 10° C. Automatic cycle defrost prevents product damaging temperature spikes. Products designed to operate in ambient room temperatures not to exceed 75° F / 50% RH.

Control System

  • All series models comes standard with a microprocessor temperature controller providing a readout of actual and set-point values. Digital temperature display and alarm module with battery backup to support temperature monitoring and alarms. This chamber comes with audible and visual alarms, remote monitoring and a resettable 1-point min/max history.


  • These chambers come with a two year parts and labor warranty, plus an additional three year compressor parts warranty.


Download Specification

View Product


  • Refrigerator is constructed of white textured cabinet and door.
  • 8 adjustable shelves
  • 3/8" probe access port

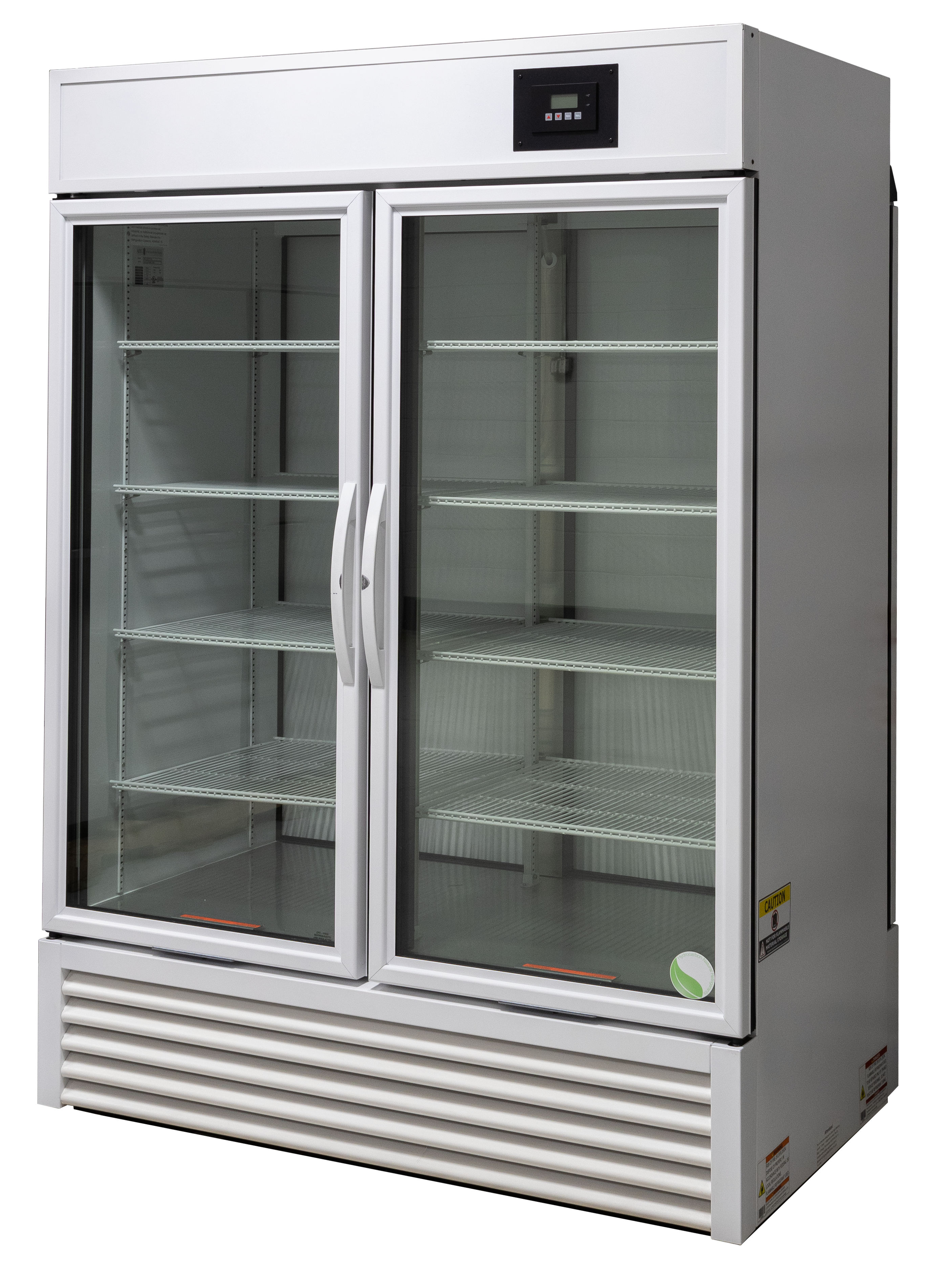

  • Two glass swing doors, self-closing (energy efficient, double pane vacuum insulated), right hinged (front)
  • Two solid swing doors (back)
  • Magnetic door gasket for positive seal with keyed door lock and heavy duty door handle
  • Casters add 4" to height
  • High density urethane foam cabinet and door insulation
  • HFC-free refrigerant (R290a), foam insulation, and packaging
  • Exterior dimensions: 54.63” W x 33.63”D x 82.63”H (with casters), 54.63" W x 33.63" D x 78.63" H (without casters)
  • Shipping weight: 575 lbs
  • Voltage: 115 / 60 / 8.5 Amps, 1/2 HP, BTU/HR 7315
  • UL/C-UL listed
