Portable Chambers

Darwin Chambers NQ Series Portable Incubators have several uses, such as:

• • Transporting Blood Samples
  • Water Treatment Research
  • Maintaining Microbiological Cultures for Cell Research

All of our portable incubators are now and marked. The NQ Series removes the possibility of blood and/or dangerous chemicals getting into the component case. Our newer secure latch lid provides safer sample transportation and prevents accidental openings. As an added option, we have incorporated lightweight Lithium-Iron Phosphate (LFP) battery technology to power the unit on battery power alone. This will be useful anywhere a 120V or 12V power supply is not available. For longer periods of time, extra battery power can be added if required for your incubator needs.

Construction

• Top-opening, hinged and latch lid, with durable handles
  for easy carrying and transportation.
• Exterior: Double wall foam insulation, Seamless high-density polyethylene, Foamed-in-place closed-cell insulating material.
• Interior: One-piece molded poly with coved floor for ease of cleaning.
• Unit completely pre-wired at factory, and includes a 12VDC car adapter shown
  below and AC/DC power supply cord.

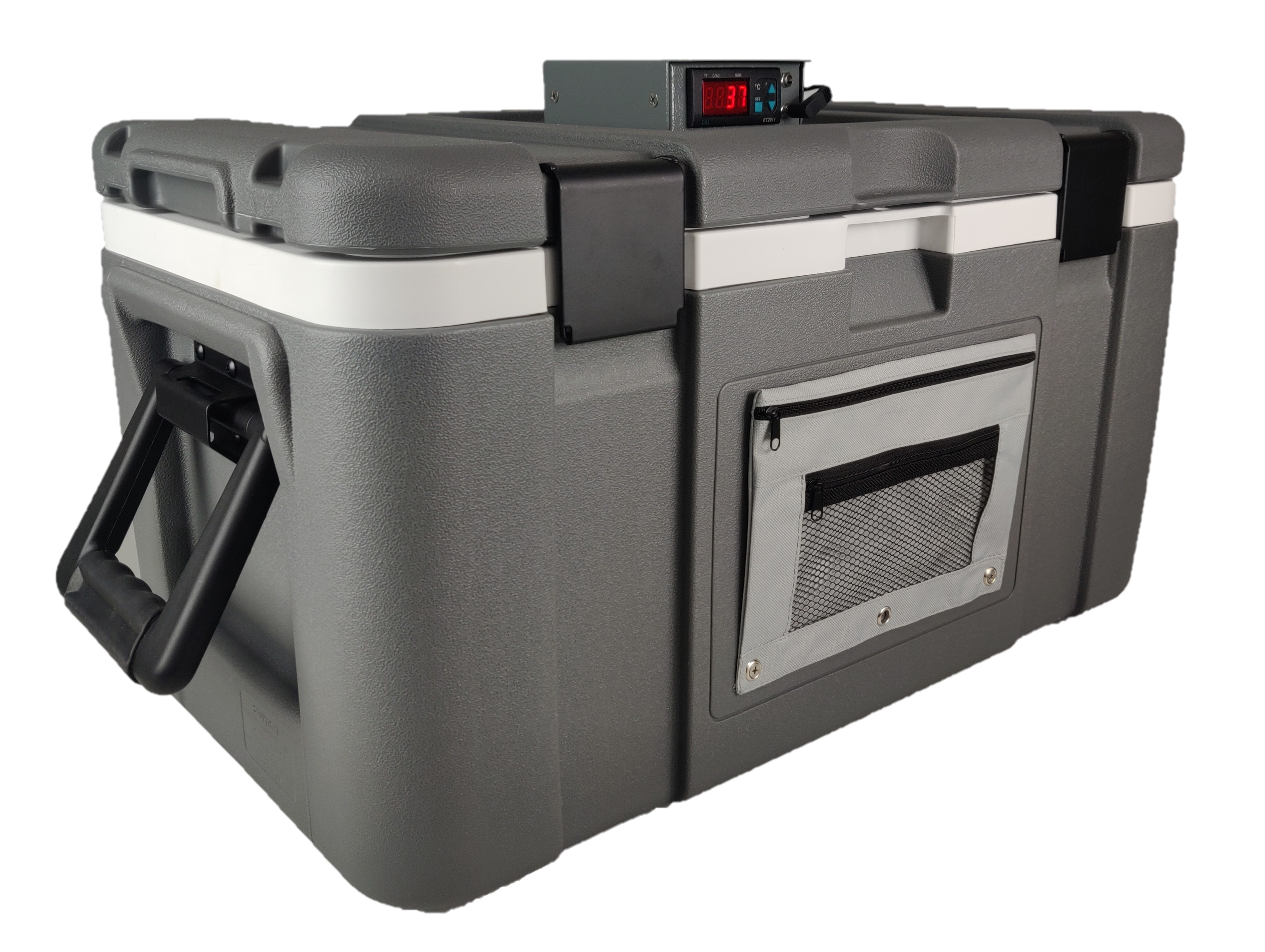

Depicted above is the NQ30

Characteristics

• Heat only with a High/Low temperature cut off.
• Hinged and latch lid allows for a more secure transportation.
• NQ30, NQ50, and NQ72 attached oversized drain plug allows easy cleaning
• Standard, redundant high temperature over-ride.
• Ruggedized interface panel.
• Redundant power inlets.

Options

• Precision Liquid-In-Glass Verification Thermometer, 15/50C. NIST Traceable.
• Test tube rack
• Attached document pouch
• Battery pack (details listed below)
• • Allows the NQ30 incubator to operate approximately 15 hours without need for an external power source at 23-23.5C Ambient.
  • The NQ16 incubator runs for approximately 14 hours at 23-23.5C Ambient.
  • The NQ09 incubator runs for approximately 14 hours at 23-23.5C Ambient.
  • Ultra-lightweight. Less than 1/4 the weight of comparable lead-acid battery.
  • The battery pack is approximately 3" (7.6cm) in additional width and weighs 3.75 lbs (1.7 kg).
  • Incredibly long life.
  • Lightweight Lithium-Iron Phosphate (LFP) batteries proven rugged
  • Li-Fe batteries are the standard type of batteries chosen for motorcycle
    and automobile racing due to their weight, output, and reliability.
  • Safe. Unlike other lithium based batteries, Li-Fe batteries are not
    susceptible to overheating and spontaneous fire. Unlike lead-acid batteries, there is no lead or acid to worry about.
  • Includes battery charger and cables.
NQ Series Product Manual

Capacity

Model	Interior Dimensions in.	Exterior Dimensions in.	Weight lbs.	Interior Dimensions cm.	Exterior Dimensions cm.	Weight kg.	Battery Runtime*
NQ09	L: 10.5 x W: 7.25 x H: 5 in	L: 13 x W: 9.5 x H: 10.75 in	5 lbs.	L: 26.67 x W: 18.42 x H: 12.7 cm	L: 33.02 x W: 24.13 x H: 27.31 cm	2.27 kg.	8 hrs.
NQ09XT	L: 11 x W: 7 x H: 5 in	L: 13.5 x W: 9.5 x H: 11.125 in	7 lbs.	L: 27.94 x W: 17.78 x H: 12.7 cm	L: 34.29 x W: 24.13 x H: 28.26 cm	3.18 kg.	14 hrs.
NQ16	L: 12.5 x W: 6.75 x H: 8.5 in	L: 21 x W: 13 x H: 15.125 in	8 lbs.	L: 31.75 x W: 17.15 x H: 21.59 cm	L: 53.34 x W: 33.02 x H: 38.42 cm	3.63 kg.	10 hrs.
NQ30	L: 14 x W: 8 x H: 11 in	L: 21 x W: 14 x H: 18.5 in	12 lbs.	L: 35.56 x W: 20.32 x H: 27.94 cm	L: 53.34 x W: 35.56 x H: 46.99 cm	5.44 kg.	9 hrs.
NQ50	L: 19.25 x W: 11.8 x H: 11.4 in	L: 23.25 x W: 16.5 x H: 19 in	20 lbs.	L: 48.9 x W: 29.97 x H: 28.96 cm	L: 59.06 x W: 41.91 x H: 48.26 cm	9.07 kg.	7 hrs.
NQ72	L: 13.4 x W: 13 x H: 12.2 in	L: 30 x W: 18.2 x H: 19 in	30 lbs.	L: 34.04 x W: 33.02 x H: 30.99 cm	L: 76.2 x W: 46.23 x H: 48.26 cm	13.61 kg.	6 hrs.
NQ86	L: 13.25 x W: 13 x H: 16.9 in	L: 31.5 x W: 20.5 x H: 25.2 in	50 lbs.	L: 33.66 x W: 33.02 x H: 42.93 cm	L: 80.01 x W: 52.07 x H: 64.01 cm	22.68 kg.	5 hrs.
NQMFU	L: 5.75 x W: 5.75 x H: 6.69 in	L: 14.2 x W: 11 x H: 11.8 in	7.75 lbs.	L: 14.61 x W: 14.61 x H: 16.99 cm	L: 36.07 x W: 27.94 x H: 29.97 cm	3.52 kg.	22 hrs.
*Battery runtimes only apply to incubators equipped with the NQRB rechargeable battery module. Runtimes are approximate and based on steady-state operation at 37°C in a 22°C ambient environment. Performance may vary depending on ambient temperatures, load mass, and unit configuration.

Below is a NQ16 with Battery Pack Option installed.

Photo depicts the NQ7Plus with both attachable cords (included with purchase): use either the AC/DC power supply cord or the 12VDC car adapter to power the unit.  Battery pack option also available, please see below.

---
