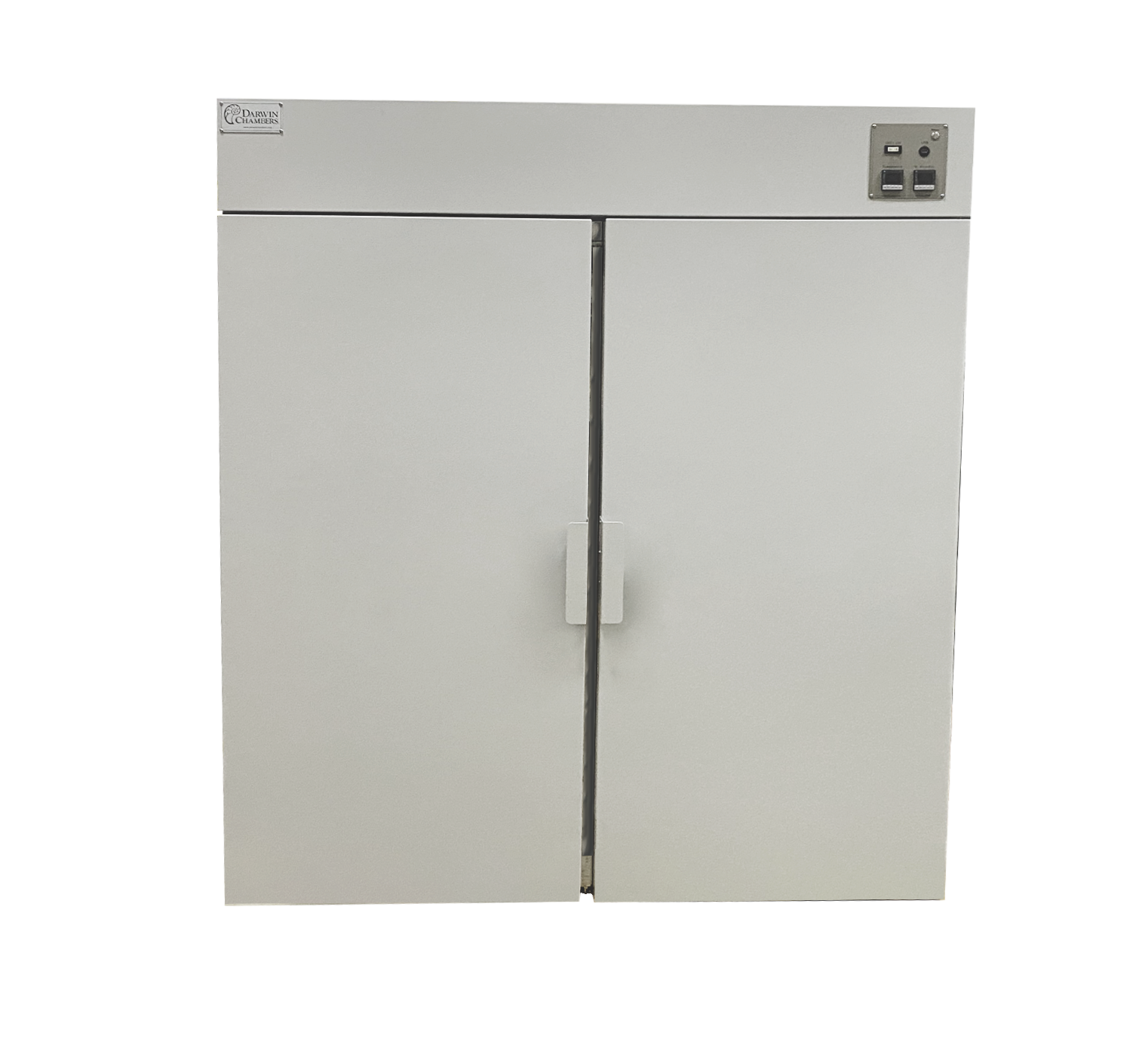

Stability Chamber - PH068

Cabinet Construction

  • Interior of 20-gauge, 304 stainless steel that is powder-coated white. This is a differentiator vs competitor thinner (26-gauge), galvanized, wet painted interior
  • Exterior of 20-gauge, galvanized steel for more resistance to dents vs 24-gauge
  • Door exterior of 20-gauge aluminum for long life. Magnetic gasket. Industrial hinges
  • Includes 2&3/4” casters (rated at 300lb/ea.) or leveling legs
  • 2" I.D access port with access port cover and insulation plug located on side wall of the chamber.

Doors

  • Positive magnetic seal, reversible.

Insulation

  • Entire cabinet structure and doors insulated using 2″ polyurethane foam.

Shelving

  • Wire shelves (3 per door) stainless steel shelves included. Shelves capable of supporting up to 150 lbs of evenly distributed weight.
  • Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Stainless steel shelf clips to be included for each shelf.

Downloads

Download Specification

Cooling System

  • Top mounted, thermoelectric cooling system. Peltier based technology is solid state, highly efficient, reliable, and provides minimal vibration.
  • Semi-Redundant cooling capability.
  • Cooling surfaces act as dehumidifying modules at 25°C/60%RH and 30°C/65%RH

Airflow

  • Airflow is through back wall plenum down to bottom of chamber for minimal plant disturbance and maximum uniformity.

Humidity Control

  • NIST traceable 0.8% Rotronic humidity sensor w/cert. Solid state controlled, ultrasonic humidifier with ceramic/titanium disk for long life.

Electrical Characteristics

  • Unit completely pre-wired at factory, and ready for final connection to a 120V/60Hz/1/15a phase - 15 amp dedicated circuit.

Popular options include chart recorder and TraceLock electronic/audit capable locks.
