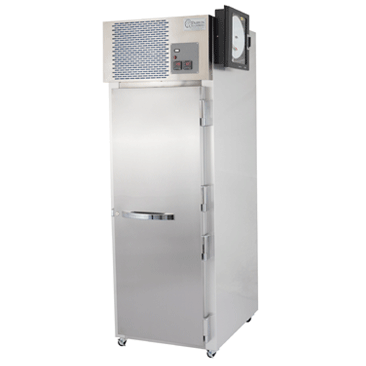

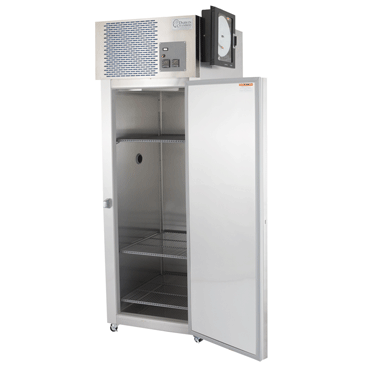

Environmental Chamber - KB030

Cabinet Construction

  • Stainless model has stainless steel front door, and sides on exterior. Interior is stainless steel side walls, back, floor, ceiling, and door liner. This unit includes LED interior lighting.
  • Standard model features stainless door, front, and brushed aluminum sides. Interior has coated aluminum side walls, door liner, and back with stainless steel floor and ceiling.
  • 2" I.D access port with access port cover and insulation plug located on side wall of the chamber.

Doors

  • Positive seal, self-closing doors (gravity cam-lift) with 120 degree stay open feature. Door gasket removal and installation is tool-less. Glass door models feature double pane,"Low-E" glass.

Insulation

  • Entire cabinet structure and doors insulated using foamed-in-place CFC-free polyurethane foam.

Shelving

  • Wire shelves (3 per door) available in stainless steel or PVC coated. Shelves capable of supporting up to 150 lbs of evenly distributed weight. Gray PVC coated shelves are standard.
  • Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.

Downloads

Refrigeration System

  • Unsurpassed temperature control through continuous refrigeration bypass system.
  • Refrigeration system factory balanced using CFC free 134A refrigerant.
  • Top mounted condensing unit.
  • Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain interior cabinet temperature (non-adjustable capillary tube system superior to problematic expansion valve).
  • Evaporator - epoxy-coated at the time of manufacture to eliminate the potential of corrosion.

Electrical Characteristics

  • Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated (recommended) outlet. Unit runs approx. 6RLA under test conditions.
  • A cord and plug set is included.
  • A sole use circuit is recommended.

Popular options include chart recorder and TraceLock electronic/audit capable locks.
