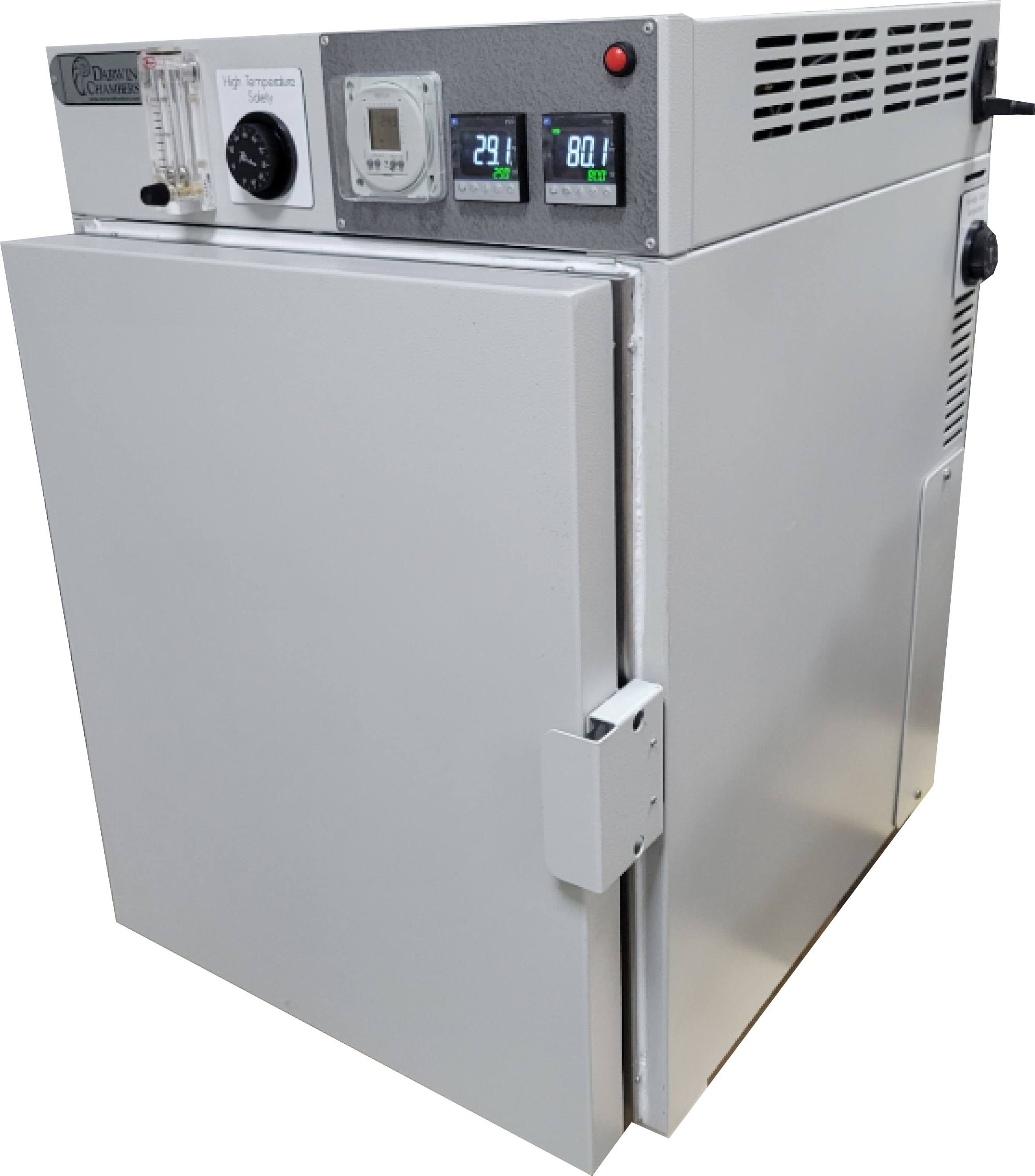

Insect Rearing Chambers – IN03
Insect Rearing Chambers – IN03


Cabinet Construction
- Standard model features powder-coated door, front, and sides. Interior has 304 stainless steel on door liner, top, bottom, back and sides.
- 2″ I.D access port with access port cover and insulation plug located on side wall of the chamber.
- Racking available to stack units.
- Positive magnetic seal, reversible.
- Entire cabinet structure and doors insulated using 2″ urethane foam.
- 2 stainless steel wire shelves are standard. Shelves capable of supporting up to 150 lbs of evenly distributed weight.
- Full height shelf support pilasters, with double oblong holes on 1/2″ centers. Pilasters made of stainless steel. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.
Cooling System
- Top mounted, thermoelectric cooling system. Peltier based technology is solid state, highly efficient, reliable, and provides minimal vibration.
- Semi-Redundant cooling capability.
- Cooling surfaces act as dehumidifying modules at 25°C/60%RH and 30°C/65%RH
- Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase – 15 amp dedicated (recommended) outlet.
- A cord and plug set is included.
- A sole use circuit is recommended.
Popular options include humidity control, lighting, timed lighting, chart recorder and TraceLock electronic/audit capable locks.
