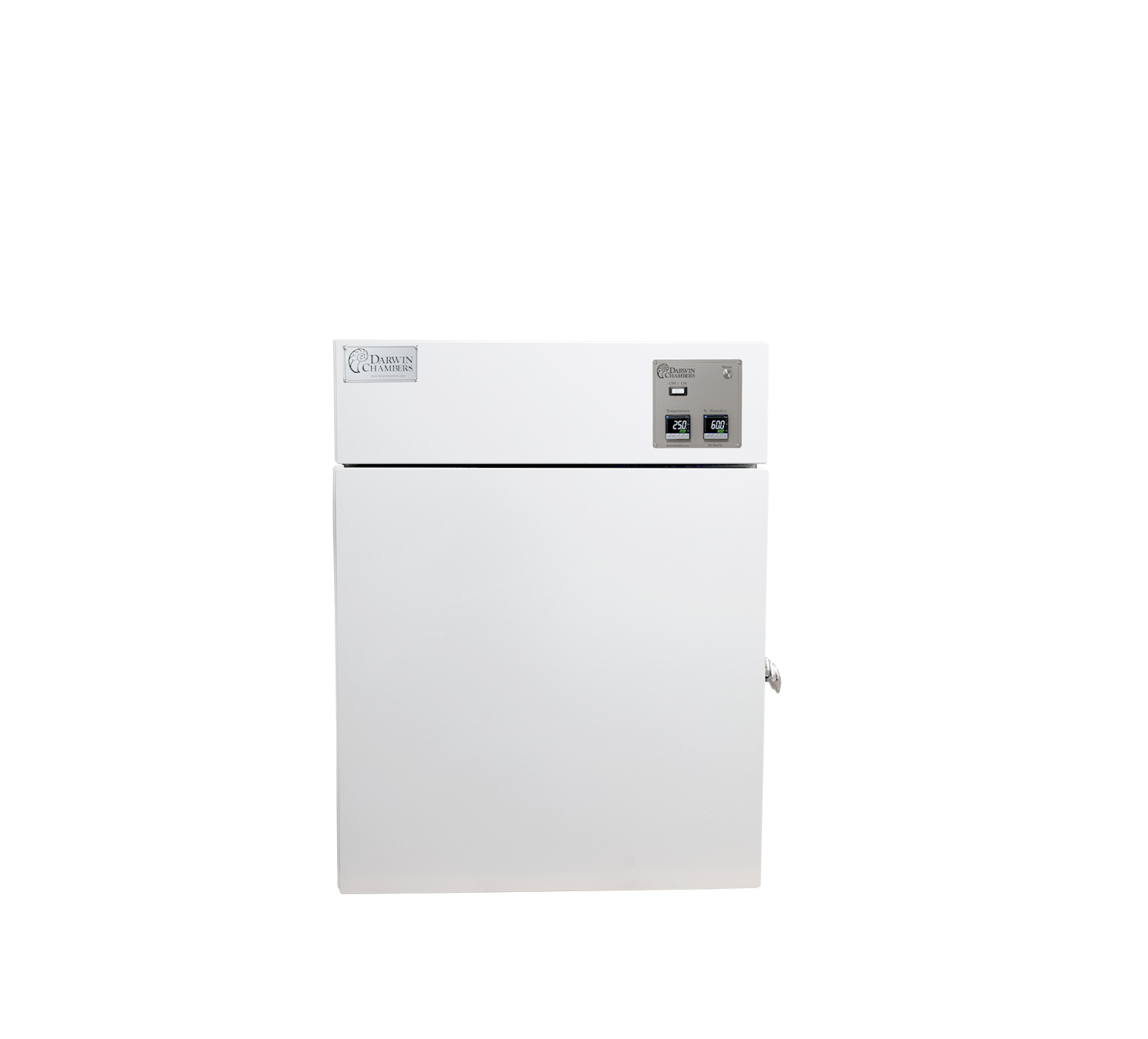

Environmental Chamber - KB011

Cabinet Construction

  • Standard model features powder-coated door, front, and sides. Interior has 304 stainless steel on door liner, top, bottom, back and sides.
  • 2" I.D access port with access port cover and insulation plug located on side wall of the chamber.

Racking

  • Racking available to stack units.
Rack Drawing

Door

  • Positive magnetic seal, reversible.

Insulation

  • Entire cabinet structure and doors insulated using 2" urethane foam.

Shelving

  • 2 stainless steel wire shelves included. Shelves capable of supporting up to 150 lbs of evenly distributed weight.
  • Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of stainless steel. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.

Downloads

Download Specification

Refrigeration System

  • Unsurpassed temperature control through continuous refrigeration bypass system.
  • Refrigeration system factory balanced using CFC free 134A refrigerant.
  • Top mounted condensing unit.
  • Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain interior cabinet temperature (non-adjustable capillary tube system superior to problematic expansion valve).
  • Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion.

Humidity Control

  • NIST traceable 0.8% Rotronic humidity sensor w/cert. • Solid state controlled, ultrasonic humidifier with ceramic/titanium disk for long life.

Electrical Characteristics

  • Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated (recommended) outlet.
  • A cord and plug set is included.
  • A sole use circuit is recommended.

Popular options include chart recorder and TraceLock electronic/audit capable locks.
