Reach In Freezer – FZ030

Laboratory Freezer – FZ030

Cabinet Construction
  • Stainless model has stainless steel front door, and sides on exterior. Interior is stainless steel side walls, back, floor, ceiling, and door liner. This unit includes LED interior lighting.

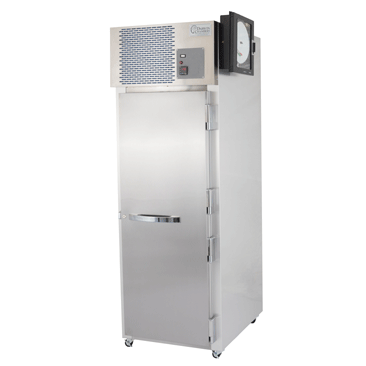

  • Standard model (pictured at right) features stainless door, front, and brushed aluminum sides. Interior has coated aluminum side walls, door liner,and back with stainless steel floor and ceiling.
Doors
  • Positive seal, self-closing doors (gravity cam-lift) with 120 degree stay open feature. Door gasket removal and installation is tool-less. Glass door models feature double pane,”Low-E” glass.
Insulation
  • Positive magnetic seal, reversible.
Shelving
  • Wire shelves (3 per door) available in stainless steel or PVC coated. Shelves capable of supporting up to 150 lbs of evenly distributed weight. Gray PVC coated shelves are standard.
  • Full height shelf support pilasters, with double oblong holes on 1″ centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.
Refrigeration System
  • Oversized and balanced, environmentally friendly R404A refrigeration system holds -23°C
  • Epoxy coated evaporator.
  • Large evaporator and coil heater permit short defrost cycle.
  • Defrost system time initiated, temperature terminated.
  • Automatic evaporator fan motor delay during defrost cycle.
Electrical Characteristics
  • Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase – 15 amp dedicated (recommended) outlet. Unit runs approx. 6RLA under test conditions.
  • A cord and plug set is included.
  • A sole use circuit is recommended.

Popular options include chart recorder, and TraceLock electronic/audit capable locks.

Features

Reliable Cooling Redundancy

Each FZ series freezer includes multiple, independent thermoelectric cooling units. The 7 year warranty on cooling components and the ability of our chambers to maintain temperature, even if the chamber suffers multiple failures, is unmatched by any other refrigeration-based chamber.

Widely Proven, Non-Proprietary Controllers

Standard controllers for the FZ Series are manufactured by Fuji Electric and are ideal for laboratory freezers. Unlike many proprietary controllers, this controller is commercially available and proven in tens of thousands of installations. Standard functions include: autotuning, fuzzy logic, PID control, programmable alarms, calibration capability, offset capability, etc. A touchscreen control interface is optional. Other controller manufacturers are also supported (Watlow, Allen-Bradley etc.)

Greatly Reduced Direct and Indirect Energy Loads

The FZ Series freezers utilize less energy than comparable incubators and introduce less impact upon building cooling systems. This efficiency “dual benefit” allows our chambers to be located in spaces unsuitable for other chambers.

Services and Warranties

We offer 24 hour technical support throughout the lifetime of your freezer. In addition to standard warranties, we also offer extended warranties for cooling components, parts and labor. We also provide qualifications, validations and preventive maintenance services at an additional cost. Please ask for a quote.

Options Available

  • Chart Recorder
  • Data Logger
  • Quiet Operation

    The FZ series freezers utilize quiet, highly efficient DC fans.
